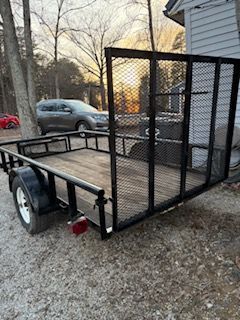

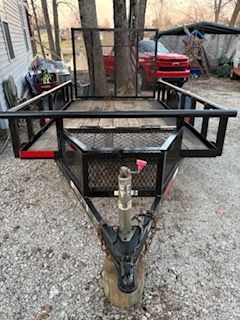

5.5' x 10' Carry-on Utility Trailer

$40.00

• SPECIFICATIONS

  5.5' x 10' Carry-On Utility Trailer – Specifications

  Trailer Type:




  Open Utility Trailer (Single Axle)

  Manufacturer:




  Carry-On Trailer Corp.

  Model Size:




  5.5 feet (width) x 10 feet (length)

  📐 Dimensions

  • Interior Bed Size: 66" W x 120" L (5.5' x 10')
  • Overall Length:~13 feet (varies slightly by model)
  • Side Rail Height:~13"
  • Deck Height:~16–18" off the ground




  ⚙️ Trailer Capacity

  • GVWR (Gross Vehicle Weight Rating): Approx. 2,990 lbs
  • Empty Weight: Approx. 950–1,000 lbs
  • Payload Capacity: Up to 1,990–2,000 lbs (depending on load distribution)




  🚙 Hitch & Towing

  • Coupler Size: 2" Ball
  • Connector Plug: 4-Way Flat
  • Safety Chains: Included
  • Tongue Jack: Yes (swing-away or fixed)




  🛞 Axle & Tires

  • Axle: 3,500 lb rated single axle
  • Tires: 15” radial tires
  • Bolt Pattern: 5 lug
  • Spare Tire Mount: Optional




  🔐 Features

  • Treated wood floor deck
  • Angle iron or tube steel rails
  • Rear load gate or ramp (fold-down)
  • Multiple tie-down points
  • Powder-coated frame for weather resistance




  Perfect For:

  • Hauling furniture, appliances, debris
  • Lawn care equipment
  • DIY construction materials
  • Moving small ATVs or mowers
  • Trash removal







• HOW TO USE

  How to Use the 5.5' x 10' Carry-On Utility Trailer

  This versatile 5.5’ x 10’ utility trailer is great for hauling furniture, appliances, lawn equipment, trash, small construction materials, and more. Here’s how to use it safely and effectively:




  ✅ Step 1: Hook Up the Trailer

  • Ensure your tow vehicle has a 2” ball hitch and a working 4-way flat plug for lights.
  • Back your vehicle up slowly and lower the trailer coupler onto the hitch ball.
  • Lock the coupler and secure the safety chains in a crisscross pattern.
  • Plug in the light connector and check that brake lights and turn signals work properly.




  ✅ Step 2: Load Your Items

  • Distribute weight evenly from front to back and side to side.
  • Place heavier items over the axle(center of the trailer).
  • Use ratchet straps or tie-downs to secure your load to the D-rings or railings.
  • Avoid stacking too high—stay below the trailer’s side rail height.




  ✅ Step 3: Drive with Caution

  • Drive below the speed limit(especially on curves and hills).
  • Allow extra stopping distance—trailers add weight!
  • Take wide turns and avoid sudden lane changes.




  ✅ Step 4: Unload Safely

  • Park on level ground.
  • Use ramps (if available) for heavy wheeled items.
  • Remove all straps before unloading.




  Important Tips:

  • Max load capacity: Approx. 1,500–2,000 lbs (check sticker for exact rating).
  • Make sure your vehicle can handle the load.
  • Do not overload the trailer or tow over capacity.
  • We are not responsible for your vehicle.




  Need help? We’re happy to walk you through the hookup and loading process when you rent from Roark Rolling Rentals 365!
